bitmap2amiraMesh.m File Reference

Convert bitmap matrix to Amira Mesh binary format. More...

Functions
function result =	bitmap2amiraMesh (filename, bitmap, img_info, options)
	Convert bitmap matrix to Amira Mesh binary format.
function fn =	bitmap2amiraMesh>generateSequentialFilename (name, num, files_no, ext)
function	bitmap2amiraMesh>saveAmFile (filename, bitmap, img_info, options, wb)

Detailed Description

Convert bitmap matrix to Amira Mesh binary format.

Function Documentation

bitmap2amiraMesh()

function result = bitmap2amiraMesh	(		filename,
			bitmap,
			img_info,
			options )

Convert bitmap matrix to Amira Mesh binary format.

Parameters

filename	filename for Amira Mesh file
bitmap	a dataset, [1:height, 1:width, 1:colors, 1:no_stacks]
img_info	img_info containers.Map from im_browser.m
options	a structure with some optional parameters .overwrite - if 1 do not check whether file with provided filename already exists .showWaitbar - if 1 - show the wait bar, if 0 - do not show .colors - [optional] - a matrix of colors for multiple color channels, format: [color channel][Red Green Blue] in range from 0-1. Applicable to the HxMultiChannelField3 type of data saving. .Saving3d: 'multi' - save all stacks into a single file 'sequence' - generate a sequence of files .SliceName: [optional] a cell array with filenames without path .verbose: [optional] a logical switch (default: true), report the saved filename

Return values

result

result of the function run, 1 - success, 0 - fail

Required fields of options:

References generateSequentialFilename().

Referenced by mibChopDatasetController.chopBtn_Callback(), mibCropObjectsController.cropBtn_Callback(), mibCropObjectsController.generatePatches(), mibImage.saveImageAsDialog(), mibDeepController.startPrediction2D(), mibDeepController.startPrediction3D(), and mibDeepController.startPredictionBlockedImage().

Here is the call graph for this function:

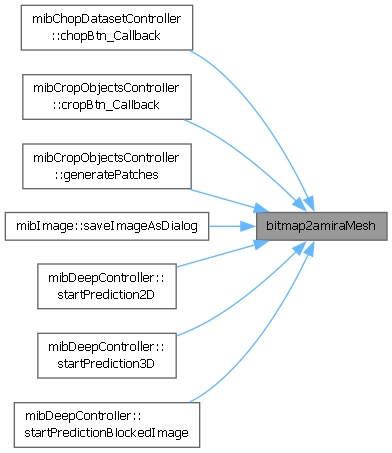

Here is the caller graph for this function:

bitmap2amiraMesh>generateSequentialFilename()

function fn = bitmap2amiraMesh>generateSequentialFilename	(		name,
			num,
			files_no,
			ext )

bitmap2amiraMesh>saveAmFile()

function bitmap2amiraMesh>saveAmFile	(		filename,
			bitmap,
			img_info,
			options,
			wb )

References max, and min.
