mibPreferencesAppController Class Reference

class displays preferences dialog using appdesigner created GUI More...

Inheritance diagram for mibPreferencesAppController:

Collaboration diagram for mibPreferencesAppController:

Public Member Functions
	mibPreferencesAppController (mibModel, varargin)
function	closeWindow ()
	closing mibPreferencesAppController window
function	updateWidgets (panelId)
	update widgets of this window
function	helpBtnCallback ()
function status =	ApplyButtonPushedCallback ()
	apply preferences to MIB
function	RescaleGUIButtonPushed ()
	rescale user interface of MIB
function	OKButtonPushedCallback ()
	callback on press of OK
function	ColorPanelCallbacks (event)
	callbacks for modification of the Colors panel
function	KeyboardShortcutsPanelCallbacks (event)
	callbacks for modification of the Keyboard shortcuts panel Parameters: event: a structure to the GUI element that has triggered callback
function	SegmentationPanelCallbacks (event)
	callbacks for modification of the Segmentation tools panel Parameters: event: a structure to the GUI element that has triggered callback
function	BackupAndUndoPanelCallbacks (event)
	callbacks for modification of the Undo and backup panel
function	UserInterfacePanelCallbacks (event)
	callbacks for modification of the User Interface panel
function	CategoriesTreeSelectionChanged (selectedNodes)
	callback for change of nodes of CategoriesTree
function	updateColorPalette ()
	generate default colors for the selected palette
function	updateColorsTables (ColorTableTag, options)
	update color tables: ModelsColorsTable or LUTColorsTable
function	TableCellSelectionCallback (event)
	callback for selection of a cell in ModelsColorsTable
function	ModelsColorsTableContextMenuCallbacks (event)
	callbacks for the context menu of ModelsColorsTable
function	TableCellEditCallback (event)
	callback for modification of cells in tables
function	ExternalDirSelect (event)
	callback for press of select directory button
function	ExternalDirPathChange (event)
	update of external directories
function	updateKeyShortcut (eventdata)
	callback for change of key shortcuts in the table obj.View.handles.shortcutsTable
function	Calculate ()
	---------------------------------------------------------------— % Additional functions and callbacks start main calculation of the plugin

Static Public Member Functions
static function	ViewListner_Callback (obj, src, evnt)

Public Attributes
	mibController
	a handle to mibController class
	mibModel
	handles to mibModel
	View
	handle to the view / mibPreferencesAppGUI
	listener
	a cell array with handles to listeners
	shownPanelTag
	a tag of the shown panel
	oldPreferences
	stored old preferences
	preferences
	local copy of MIB preferences
	duplicateEntries
	array with duplicate key shortcut entries
	renderedPanels
	indices of panels that are already rendered, for faster change upon press on new tree node
EVENT	closeEvent
	> Description of events event firing when window is closed
Public Attributes inherited from handle
	addlistener
	Creates a listener for the specified event and assigns a callback function to execute when the event occurs.
	notify
	Broadcast a notice that a specific event is occurring on a specified handle object or array of handle objects.
	delete
	Handle object destructor method that is called when the object's lifecycle ends.
	disp
	Handle object disp method which is called by the display method. See the MATLAB disp function.
	display
	Handle object display method called when MATLAB software interprets an expression returning a handle object that is not terminated by a semicolon. See the MATLAB display function.
	findobj
	Finds objects matching the specified conditions from the input array of handle objects.
	findprop
	Returns a meta.property objects associated with the specified property name.
	fields
	Returns a cell array of string containing the names of public properties.
	fieldnames
	Returns a cell array of string containing the names of public properties. See the MATLAB fieldnames function.
	isvalid
	Returns a logical array in which elements are true if the corresponding elements in the input array are valid handles. This method is Sealed so you cannot override it in a handle subclass.
	eq
	Relational functions example. See details for more information.
	transpose
	Transposes the elements of the handle object array.
	permute
	Rearranges the dimensions of the handle object array. See the MATLAB permute function.
	reshape
	hanges the dimensions of the handle object array to the specified dimensions. See the MATLAB reshape function.
	sort
	ort the handle objects in any array in ascending or descending order.

Detailed Description

class displays preferences dialog using appdesigner created GUI

obj.startController('mibPreferencesAppController'); // as GUI tool

Constructor & Destructor Documentation

mibPreferencesAppController()

mibPreferencesAppController.mibPreferencesAppController	(		mibModel,
			varargin )

References handle.addlistener, mibModel, mibUpdateFontSize(), and moveWindowOutside().

Here is the call graph for this function:

Member Function Documentation

ApplyButtonPushedCallback()

function status = mibPreferencesAppController.ApplyButtonPushedCallback

(

)

apply preferences to MIB

References mibUpdateFontSize(), and handle.notify.

Here is the call graph for this function:

BackupAndUndoPanelCallbacks()

function mibPreferencesAppController.BackupAndUndoPanelCallbacks

(

event

)

callbacks for modification of the Undo and backup panel

Parameters

event

a structure to the GUI element that has triggered callback

Required fields of event:

Calculate()

function mibPreferencesAppController.Calculate

(

)

---------------------------------------------------------------— % Additional functions and callbacks start main calculation of the plugin

References handle.notify.

CategoriesTreeSelectionChanged()

function mibPreferencesAppController.CategoriesTreeSelectionChanged

(

selectedNodes

)

callback for change of nodes of CategoriesTree

Parameters

selectedNodes

handle to the selected nodes

Required fields of selectedNodes:

closeWindow()

function mibPreferencesAppController.closeWindow

(

)

closing mibPreferencesAppController window

References handle.isvalid, and handle.notify.

ColorPanelCallbacks()

function mibPreferencesAppController.ColorPanelCallbacks

(

event

)

callbacks for modification of the Colors panel

Parameters

event

a structure to the GUI element that has triggered callback

Required fields of event:

References max, and mibInputDlg().

Here is the call graph for this function:

ExternalDirPathChange()

function mibPreferencesAppController.ExternalDirPathChange

(

event

)

update of external directories

Required fields of event:

ExternalDirSelect()

function mibPreferencesAppController.ExternalDirSelect

(

event

)

callback for press of select directory button

Required fields of event:

References mib_uigetfile().

Here is the call graph for this function:

helpBtnCallback()

function mibPreferencesAppController.helpBtnCallback

(

)

KeyboardShortcutsPanelCallbacks()

function mibPreferencesAppController.KeyboardShortcutsPanelCallbacks

(

event

)

callbacks for modification of the Keyboard shortcuts panel Parameters: event: a structure to the GUI element that has triggered callback

Required fields of event:

References generateDefaultKeyShortcuts().

Here is the call graph for this function:

ModelsColorsTableContextMenuCallbacks()

function mibPreferencesAppController.ModelsColorsTableContextMenuCallbacks

(

event

)

callbacks for the context menu of ModelsColorsTable

Paramters

event: a handle to the event structure

Required fields of event:

References max, mib_uigetfile(), mibInputDlg(), mibInputMultiDlg(), and min.

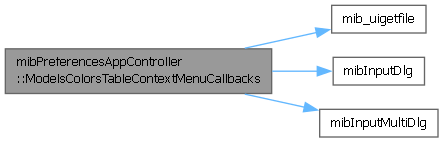

Here is the call graph for this function:

OKButtonPushedCallback()

function mibPreferencesAppController.OKButtonPushedCallback

(

)

callback on press of OK

References handle.notify.

RescaleGUIButtonPushed()

function mibPreferencesAppController.RescaleGUIButtonPushed

(

)

rescale user interface of MIB

References mibRescaleWidgets().

Here is the call graph for this function:

SegmentationPanelCallbacks()

function mibPreferencesAppController.SegmentationPanelCallbacks

(

event

)

callbacks for modification of the Segmentation tools panel Parameters: event: a structure to the GUI element that has triggered callback

Required fields of event:

TableCellEditCallback()

function mibPreferencesAppController.TableCellEditCallback

(

event

)

callback for modification of cells in tables

Paramters

event: a handle to the event structure

Required fields of event:

TableCellSelectionCallback()

function mibPreferencesAppController.TableCellSelectionCallback

(

event

)

callback for selection of a cell in ModelsColorsTable

Paramters

event: a handle to the event structure

Required fields of event:

updateColorPalette()

function mibPreferencesAppController.updateColorPalette

(

)

generate default colors for the selected palette

References mibGenerateDefaultSegmentationPalette().

Here is the call graph for this function:

updateColorsTables()

function mibPreferencesAppController.updateColorsTables	(		ColorTableTag,
			options )

update color tables: ModelsColorsTable or LUTColorsTable

Parameters

options	a structure with additional parameters .updateDataOnly - [logical, dafault=false] update the data in the table without .rowId - [integer, default=[]] index of a row to update, when empty update the full table redrawing the styles
ColorTableHandle	a string with a tag of the table: "ModelsColorsTable", "LUTColorsTable"

Required fields of options:

References min.

updateKeyShortcut()

function mibPreferencesAppController.updateKeyShortcut

(

eventdata

)

callback for change of key shortcuts in the table obj.View.handles.shortcutsTable

Required fields of eventdata:

updateWidgets()

function mibPreferencesAppController.updateWidgets

(

panelId

)

update widgets of this window

Parameters

panelId;

[optional] handle to panel that has to be updated, when missing all panels are updated "UserInterfacePanel",

UserInterfacePanelCallbacks()

function mibPreferencesAppController.UserInterfacePanelCallbacks

(

event

)

callbacks for modification of the User Interface panel

Parameters

event

a structure to the GUI element that has triggered callback

Required fields of event:

References mibUpdateFontSize().

Here is the call graph for this function:

ViewListner_Callback()

static function mibPreferencesAppController.ViewListner_Callback ( obj, src, evnt )

static

Member Data Documentation

closeEvent

EVENT mibPreferencesAppController.closeEvent

> Description of events event firing when window is closed

Events

closeEvent

duplicateEntries

mibPreferencesAppController.duplicateEntries

array with duplicate key shortcut entries

listener

mibPreferencesAppController.listener

a cell array with handles to listeners

mibController

mibPreferencesAppController.mibController

a handle to mibController class

mibModel

mibPreferencesAppController.mibModel

handles to mibModel

Referenced by mibPreferencesAppController().

oldPreferences

mibPreferencesAppController.oldPreferences

stored old preferences

preferences

mibPreferencesAppController.preferences

local copy of MIB preferences

renderedPanels

mibPreferencesAppController.renderedPanels

indices of panels that are already rendered, for faster change upon press on new tree node

shownPanelTag

mibPreferencesAppController.shownPanelTag

a tag of the shown panel

View

mibPreferencesAppController.View

handle to the view / mibPreferencesAppGUI

---

The documentation for this class was generated from the following file:

• Classes/@mibPreferencesAppController/mibPreferencesAppController.m
