mibSnapshotController Class Reference

a controller class for the snapshots subwindow available via MIB->Menu->File->Make snapshot More...

Inheritance diagram for mibSnapshotController:

Collaboration diagram for mibSnapshotController:

Public Member Functions
	mibSnapshotController (varargin)
	constructor of the class Parameters: parameter 1: a handles to mibModel parameter 2: [optional] a handle to extra controllers
function	closeWindow ()
	closing mibSnapshotController window
function	returnBatchOpt (BatchOptOut)
	return structure with Batch Options and possible configurations via the notify syncBatch event Parameters: BatchOptOut: a local structure with Batch Options generated during Continue callback. It may contain more fields than obj.BatchOpt structure
function	updateBatchOptFromGUI (hObject)
function	updateWidgets ()
	update widgets of the window
function	updateWidthHeight ()
	update width/height for the snapshot
function	ROIIndex_Callback ()
	update shown roi
function	FileFormat_Callback ()
	a callback for selection of the output format
function	measurementsOptions_Callback ()
	update visualization settings for the measurements
function	Scalebar_Callback ()
	enable the scale bar and check of pixel size
function	crop_Callback ()
	a callback for the Crop radio buttons
function	SplitChannels_Callback ()
	— Executes on button press in SplitChannels.
function	outputDir_Callback ()
	a callback for selection of the output file
function	selectFileBtn_Callback ()
	a callback for the select file button
function	Width_Callback ()
	a callback on change of obj.View.handles.Width
function	Height_Callback ()
	a callback on change of obj.View.handles.Height
function	snapshotBtn_Callback (useBatchMode)
	make snapshot Parameters: useBatchMode: a logical switch indicating that the snapshot started in the batch mode

Static Public Member Functions
static function	ViewListner_Callback2 (obj, src, evnt)
static function	listner_ModelEvent_Callback (obj, src, evnt)
	callback function for detection of mibModel callbacks this function is recommended to use

Public Attributes
	mibModel
	handles to the model
	View
	handle to the view
	listener
	a cell array with handles to listeners
	extraController
	an optional extra controller, used for making snapshots from volume rendering window
	snapshotFilename
	a cell array {1:obj.mibModel.maxId} with filenames for saving the snapshots
	origHeight
	a height of the image area to render
	origWidth
	width of the image area to render
	resizedWidth
	width of the image area to render with respect of the aspect ratio
	BatchOpt
	a structure compatible with batch operation, see details in the contsructor
EVENT	closeEvent
	> Description of events event firing when window is closed

Detailed Description

a controller class for the snapshots subwindow available via MIB->Menu->File->Make snapshot

Constructor & Destructor Documentation

mibSnapshotController()

mibSnapshotController.mibSnapshotController

(

varargin

)

constructor of the class Parameters: parameter 1: a handles to mibModel parameter 2: [optional] a handle to extra controllers

References updateBatchOptCombineFields_Shared().

Here is the call graph for this function:

Member Function Documentation

closeWindow()

function mibSnapshotController.closeWindow

(

)

closing mibSnapshotController window

crop_Callback()

function mibSnapshotController.crop_Callback

(

)

a callback for the Crop radio buttons

FileFormat_Callback()

function mibSnapshotController.FileFormat_Callback

(

)

a callback for selection of the output format

Height_Callback()

function mibSnapshotController.Height_Callback

(

)

a callback on change of obj.View.handles.Height

listner_ModelEvent_Callback()

static function mibSnapshotController.listner_ModelEvent_Callback ( obj, src, evnt )

static

callback function for detection of mibModel callbacks this function is recommended to use

Required fields of evnt:

Required fields of obj:

measurementsOptions_Callback()

function mibSnapshotController.measurementsOptions_Callback

(

)

update visualization settings for the measurements

outputDir_Callback()

function mibSnapshotController.outputDir_Callback

(

)

a callback for selection of the output file

returnBatchOpt()

function mibSnapshotController.returnBatchOpt

(

BatchOptOut

)

return structure with Batch Options and possible configurations via the notify syncBatch event Parameters: BatchOptOut: a local structure with Batch Options generated during Continue callback. It may contain more fields than obj.BatchOpt structure

ROIIndex_Callback()

function mibSnapshotController.ROIIndex_Callback

(

)

update shown roi

Scalebar_Callback()

function mibSnapshotController.Scalebar_Callback

(

)

enable the scale bar and check of pixel size

selectFileBtn_Callback()

function mibSnapshotController.selectFileBtn_Callback

(

)

a callback for the select file button

snapshotBtn_Callback()

function mibSnapshotController.snapshotBtn_Callback

(

useBatchMode

)

make snapshot Parameters: useBatchMode: a logical switch indicating that the snapshot started in the batch mode

References export_fig(), imclipboard(), mibAddScaleBar(), mibImWrite(), and min.

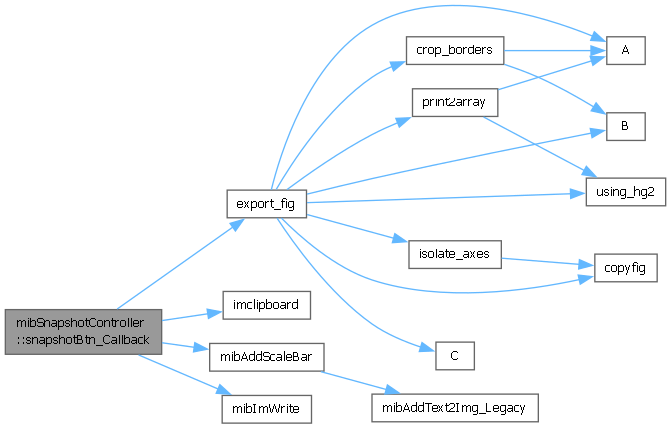

Here is the call graph for this function:

SplitChannels_Callback()

function mibSnapshotController.SplitChannels_Callback

(

)

— Executes on button press in SplitChannels.

updateBatchOptFromGUI()

function mibSnapshotController.updateBatchOptFromGUI

(

hObject

)

References updateBatchOptFromGUI_Shared().

Here is the call graph for this function:

updateWidgets()

function mibSnapshotController.updateWidgets

(

)

update widgets of the window

updateWidthHeight()

function mibSnapshotController.updateWidthHeight

(

)

update width/height for the snapshot

ViewListner_Callback2()

static function mibSnapshotController.ViewListner_Callback2 ( obj, src, evnt )

static

Width_Callback()

function mibSnapshotController.Width_Callback

(

)

a callback on change of obj.View.handles.Width

Member Data Documentation

BatchOpt

mibSnapshotController.BatchOpt

a structure compatible with batch operation, see details in the contsructor

closeEvent

EVENT mibSnapshotController.closeEvent

> Description of events event firing when window is closed

Events

closeEvent

extraController

mibSnapshotController.extraController

an optional extra controller, used for making snapshots from volume rendering window

listener

mibSnapshotController.listener

a cell array with handles to listeners

mibModel

mibSnapshotController.mibModel

handles to the model

origHeight

mibSnapshotController.origHeight

a height of the image area to render

origWidth

mibSnapshotController.origWidth

width of the image area to render

resizedWidth

mibSnapshotController.resizedWidth

width of the image area to render with respect of the aspect ratio

snapshotFilename

mibSnapshotController.snapshotFilename

a cell array {1:obj.mibModel.maxId} with filenames for saving the snapshots

View

mibSnapshotController.View

handle to the view

---

The documentation for this class was generated from the following file:

• Classes/@mibSnapshotController/mibSnapshotController.m
