mibQuestDlg.m File Reference

custom button input dialog More...

Functions
function varargout =	mibQuestDlg (varargin)
	custom button input dialog
function	mibQuestDlg>mibQuestDlg_OpeningFcn (hObject, eventdata, handles, varargin)
function varargout =	mibQuestDlg>mibQuestDlg_OutputFcn (hObject, eventdata, handles)
function	mibQuestDlg>mibQuestDlg_CloseRequestFcn (hObject, eventdata, handles)
function	mibQuestDlg>buttons_Callback (hObject, eventdata, handles)
function	mibQuestDlg>mibQuestDlg_KeyPressFcn (hObject, eventdata, handles)
function	mibQuestDlg>cancelBtn_Callback (hObject, eventdata, handles)
function	mibQuestDlg>mibQuestDlg_ResizeFcn (hObject, eventdata, handles)
function	mibQuestDlg>helpBtn_Callback (hObject, eventdata, handles)

Detailed Description

custom button input dialog

Function Documentation

mibQuestDlg()

function varargout = mibQuestDlg

(

varargin

)

custom button input dialog

Parameters

varargin

mibQuestDlg ( mibPath, prompt, buttons, dlgTitle, options ) Required Parameters for varargin: mibPath [optional] a cell string with a path to MIB installation, use global mibPath; to get it, or just an empty cell: {[]} prompt string with dialog prompt buttons a cell array {n x 1} with labels of buttons in order from right size of the dialog dlgTitle a string with the name of the dialog options an optional structure with additional options .WindowStyle - a string, can be either normal (default) or modal. .WindowWidth - a number scales the standard width of the dialog x times .WindowHeight - height of the window in points, default = 95.25 .ButtonWidth - vector with width of buttons in points .helpBtnText - text for the Help button .HelpUrl - URL to the help page, when provided a Help button is displayed, .Icon - string (question-default, celebrate, call4help, warning), an icon to use

Return values

answer

name of the pressed button

Examples:

global mibPath;
prompt = sprintf('Press one of the buttons\nnext line');
buttons = {'Right button'; 'Middle button'; 'Left button'};
dlgTitle = 'multi button dialog';
options.WindowStyle = 'normal';       // [optional] style of the window
options.Icon = 'question'; // [optional] icon to use: "question" (default), "celebrate", "call4help"
options.ButtonWidth = [50 75 75]; // [optional] width of buttons
options.WindowWidth = 1.4; // [optional] width multiplier for the dialog
options.WindowHeight = 250; // [optional] height of the dialog in points
answer = mibQuestDlg({mibPath}, prompt, buttons, dlgTitle, options);
if isempty(answer); return; end // cancel

Referenced by mibAlignmentController.continueBtn_Callback(), mibModel.materialsActions(), and mibSubtractRunningAverage().

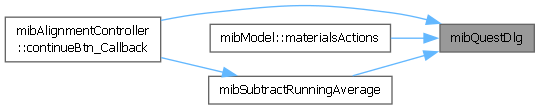

Here is the caller graph for this function:

mibQuestDlg>buttons_Callback()

function mibQuestDlg>buttons_Callback	(		hObject,
			eventdata,
			handles )

mibQuestDlg>cancelBtn_Callback()

function mibQuestDlg>cancelBtn_Callback	(		hObject,
			eventdata,
			handles )

mibQuestDlg>helpBtn_Callback()

function mibQuestDlg>helpBtn_Callback	(		hObject,
			eventdata,
			handles )

mibQuestDlg>mibQuestDlg_CloseRequestFcn()

function mibQuestDlg>mibQuestDlg_CloseRequestFcn	(		hObject,
			eventdata,
			handles )

mibQuestDlg>mibQuestDlg_KeyPressFcn()

function mibQuestDlg>mibQuestDlg_KeyPressFcn	(		hObject,
			eventdata,
			handles )

mibQuestDlg>mibQuestDlg_OpeningFcn()

function mibQuestDlg>mibQuestDlg_OpeningFcn	(		hObject,
			eventdata,
			handles,
			varargin )

References max, mibRescaleWidgets(), mibUpdateFontSize(), and moveWindowOutside().

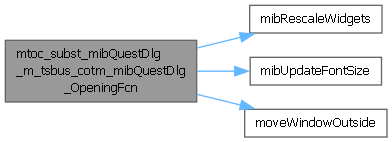

Here is the call graph for this function:

mibQuestDlg>mibQuestDlg_OutputFcn()

function varargout = mibQuestDlg>mibQuestDlg_OutputFcn	(		hObject,
			eventdata,
			handles )

mibQuestDlg>mibQuestDlg_ResizeFcn()

function mibQuestDlg>mibQuestDlg_ResizeFcn	(		hObject,
			eventdata,
			handles )
