mibSetImarisSurface.m File Reference

Send a surface from MIB to Imaris. More...

Functions
function connImaris =	mibSetImarisSurface (surface, connImaris, options)
	Send a surface from MIB to Imaris.

Detailed Description

Send a surface from MIB to Imaris.

Function Documentation

mibSetImarisSurface()

function connImaris = mibSetImarisSurface	(		surface,
			connImaris,
			options )

Send a surface from MIB to Imaris.

Parameters

surface	a structure with fields: .vertices - coordinates of vertices [Nx3] .faces - indeces of vertices for each face/triangle .normals - matrix with normals [Nx3]
connImaris	[optional] a handle to Imaris connection
options	an optional structure with additional settings .color [optional] a vector with color for spots: (1x4), (0..1) vector of [R G B A] values .name -> a char with the name of the object

Return values

connImaris

a handle to Imaris connection

Required fields of surface:

Required fields of options:

Required fields of connImaris:

Examples:

surface.vertices = [28 40 0; 29 40 0; 27 40 1; 28 40 1];
surface.faces = [1 3 4; 1 4 2];
options.color = [1 0 0];
obj.connImaris = mibSetImarisSurface(surface, obj.connImaris, options);     // call from mibController; send surface from Matlab to Imaris

References A(), B(), C(), mibConnectToImaris(), min, N, and n.

Referenced by mibRenderModel().

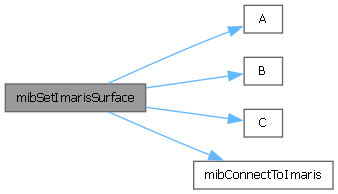

Here is the call graph for this function:

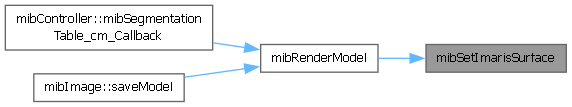

Here is the caller graph for this function:
