mibSetImarisSpots.m File Reference

Send a spots from MIB to Imaris. More...

Functions
function connImaris =	mibSetImarisSpots (spots, connImaris, options)
	Send a spots from MIB to Imaris.

Detailed Description

Send a spots from MIB to Imaris.

Function Documentation

mibSetImarisSpots()

function connImaris = mibSetImarisSpots	(		spots,
			connImaris,
			options )

Send a spots from MIB to Imaris.

Parameters

spots	a matrix [x, y, z, t] with coordinates of the spots (n x 4)
connImaris	[optional] a handle to Imaris connection
options	an optional structure with additional settings .radii -> [optional] a vector with radii of the spots (n x 1) .color [optional] a vector with color for spots: (1x4), (0..1) vector of [R G B A] values .name -> a char with the name of the object

Return values

connImaris

a handle to Imaris connection

Required fields of connImaris:

Required fields of options:

Examples:

options.lutColors = obj.mibModel.displayedLutColors;   // call from mibController; get colors for the color channels

 spots = [1, 1, 1, 1];   // add a single spot to position 1,1,1,1
@code obj.connImaris = mibSetImarisSpots(spots, obj.connImaris);     // call from mibController; send spots from matlab to imaris

References max, mibConnectToImaris(), and min.

Referenced by mibController.menuModelAnn_Callback(), and mibAnnotationsController.tableContextMenu_cb().

Here is the call graph for this function:

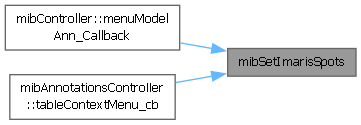

Here is the caller graph for this function:
