findjobj.m File Reference

findjobj Find java objects contained within a specified java container or Matlab GUI handle More...

Functions
function [ handles , levels , parentIdx , listing ] =	findjobj (container, varargin)
	findjobj Find java objects contained within a specified java container or Matlab GUI handle
function jControl =	findjobj>findjobj_fast (hControl, jContainer)
function jControl =	findjobj>findTooltipIn (jContainer, specialTooltipStr)

Detailed Description

findjobj Find java objects contained within a specified java container or Matlab GUI handle

Function Documentation

findjobj()

function [ handles , levels , parentIdx , listing ] = findjobj	(		container,
			varargin )

findjobj Find java objects contained within a specified java container or Matlab GUI handle

Syntax

[handles, levels, parentIds, listing] = findjobj(container, PropName,PropValue(s), ...)

Input parameters

container - optional handle to java container uipanel or figure. If unsupplied then current figure will be used PropName,PropValue - optional list of property pairs (case insensitive). PropName may also be named -PropName position - filter results based on those elements that contain the specified X,Y position or a java element Note: specify a Matlab position (X,Y = pixels from bottom left corner), not a java one size - filter results based on those elements that have the specified W,H (in pixels) class - filter results based on those elements that contain the substring (or java class) PropValue Note1: filtering is case insensitive and relies on regexp, so you can pass wildcards etc. Note2: -class is an undocumented findobj PropName, but only works on Matlab (not java) classes property - filter results based on those elements that possess the specified case-insensitive property string Note1: passing a property value is possible if the argument following property is a cell in the format of {propName,propValue}. Example: FINDJOBJ(...,property,{Text,click me}) Note2: partial property names (e.g. Tex) are accepted, as long as they're not ambiguous depth - filter results based on specified depth. 0=top-level, Inf=all levels (default=Inf) flat - same as specifying: depth,0 not - negates the following filter: not,class,c returns all elements EXCEPT those with class c persist - persist figure components information, allowing much faster results for subsequent invocations nomenu - skip menu processing, for "lean" list of handles & much faster processing; This option is the default for HG containers but not for figure, Java or no container print - display all java elements in a hierarchical list, indented appropriately Note1: optional PropValue of element index or handle to java container Note2: normally this option would be placed last, after all filtering is complete. Placing this option before some filters enables debug print-outs of interim filtering results. Note3: output is to the Matlab command window unless the listing (4th) output arg is requested list - same as print debug - list found component positions in the Command Window

Output parameters

handles - list of handles to java elements levels - list of corresponding hierarchy level of the java elements (top=0) parentIds - list of indexes (in unfiltered handles) of the parent container of the corresponding java element listing - results of print/list options (empty if these options were not specified)

Note: If no output parameter is specified, then an interactive window will be displayed with a ^^^^ tree view of all container components, their properties and callbacks.

Examples

findjobj; % display list of all javaelements of currrent figure in an interactive GUI handles = findjobj; % get list of all java elements of current figure (inc. menus, toolbars etc.) findjobj(print); % list all java elements in current figure findjobj(print,6); % list all java elements in current figure, contained within its 6th element handles = findjobj(hButton); % hButton is a matlab button handles = findjobj(gcf,position,getpixelposition(hButton,1)); % same as above but also return hButton's panel handles = findjobj(hButton,persist); % same as above, persist info for future reuse handles = findjobj(class,pushbutton); % get all pushbuttons in current figure handles = findjobj(class,pushbutton,position,123,456); % get all pushbuttons at the specified position handles = findjobj(gcf,class,pushbutton,size,23,15); % get all pushbuttons with the specified size handles = findjobj(property,Text,not,class,button); % get all non-button elements with text property handles = findjobj(-property,{Text,click me}); % get all elements with text property = click me

Sample usage

hButton = uicontrol(string,click me); jButton = findjobj(hButton,nomenu); % or: jButton = findjobj(property,{Text,click me}); jButton.setFlyOverAppearance(1); jButton.setCursor(java.awt.Cursor.getPredefinedCursor(java.awt.Cursor.HAND_CURSOR)); set(jButton,FocusGainedCallback,@myMatlabFunction); % some 30 callback points available... jButton.get; % list all changeable properties...

hEditbox = uicontrol(style,edit); jEditbox = findjobj(hEditbox,nomenu); jEditbox.setCaretColor(java.awt.Color.red); jEditbox.KeyTypedCallback = @myCallbackFunc; % many more callbacks where this came from... jEdit.requestFocus;

Technical explanation & details

http://undocumentedmatlab.com/blog/findjobj/ http://undocumentedmatlab.com/blog/findjobj-gui-display-container-hierarchy/

Known issues/limitations

• Cannot currently process multiple container objects - just one at a time
• Initial processing is a bit slow when the figure is laden with many UI components (so better use persist)
• Passing a simple container Matlab handle is currently filtered by its position+size: should find a better way to do this
• Matlab uipanels are not implemented as simple java panels, and so they can't be found using this utility
• Labels have a write-only text property in java, so they cant be found using the property,{Text,string'} notation

Warning

This code heavily relies on undocumented and unsupported Matlab functionality. It works on Matlab 7+, but use at your own risk!

Bugs and suggestions

Please send to Yair Altman (altmany at gmail dot com)

Change log

2018-09-21: Fix for R2018b suggested by Eddie (FEX); speedup suggested by Martin Lehmann (FEX); alert if trying to use with uifigure 2017-04-13: Fixed two edge-cases (one suggested by H. Koch) 2016-04-19: Fixed edge-cases in old Matlab release; slightly improved performance even further 2016-04-14: Improved performance for the most common use-case (single input/output): improved code + allow inspecting groot 2016-04-11: Improved performance for the most common use-case (single input/output) 2015-01-12: Differentiate between overlapping controls (for example in different tabs); fixed case of docked figure 2014-10-20: Additional fixes for R2014a, R2014b 2014-10-13: Fixes for R2014b 2014-01-04: Minor fix for R2014a; check for newer FEX version up to twice a day only 2013-12-29: Only check for newer FEX version in non-deployed mode; handled case of invisible figure container 2013-10-08: Fixed minor edge case (retrieving multiple scroll-panes) 2013-06-30: Additional fixes for the upcoming HG2 2013-05-15: Fix for the upcoming HG2 2013-02-21: Fixed HG-Java warnings 2013-01-23: Fixed callbacks table grouping & editing bugs; added hidden properties to the properties tooltip; updated help section 2013-01-13: Improved callbacks table; fixed tree refresh failure; fixed: tree node-selection didn't update the props pane nor flash the selected component 2012-07-25: Fixes for R2012a as well as some older Matlab releases 2011-12-07: Fixed File is empty messages in compiled apps 2011-11-22: Fix suggested by Ward 2011-02-01: Fixes for R2011a 2010-06-13: Fixes for R2010b; fixed download (m-file => zip-file) 2010-04-21: Minor fix to support combo-boxes (aka drop-down, popup-menu) on Windows 2010-03-17: Important release: Fixes for R2010a, debug listing, objects not found, component containers that should be ignored etc. 2010-02-04: Forced an EDT redraw before processing; warned if requested handle is invisible 2010-01-18: Found a way to display label text next to the relevant node name 2009-10-28: Fixed uitreenode warning 2009-10-27: Fixed auto-collapse of invisible container nodes; added dynamic tree tooltips & context-menu; minor fix to version-check display 2009-09-30: Fix for Matlab 7.0 as suggested by Oliver W; minor GUI fix (classname font) 2009-08-07: Fixed edge-case of missing JIDE tables 2009-05-24: Added support for future Matlab versions that will not support JavaFrame 2009-05-15: Added sanity checks for axes items 2009-04-28: Added debug input arg; increased size tolerance 1px => 2px 2009-04-23: Fixed location of popupmenus (always 20px high despite what's reported by Matlab...); fixed uiinspect processing issues; added blog link; narrower action buttons 2009-04-09: Automatic nomenu for uicontrol inputs; significant performance improvement 2009-03-31: Fixed position of some Java components; fixed properties tooltip; fixed node visibility indication 2009-02-26: Indicated components visibility (& auto-collapse non-visible containers); auto-highlight selected component; fixes in node icons, figure title & tree refresh; improved error handling; display FindJObj version update description if available 2009-02-24: Fixed update check; added dedicated labels icon 2009-02-18: Fixed compatibility with old Matlab versions 2009-02-08: Callbacks table fixes; use uiinspect if available; fix update check according to new FEX website 2008-12-17: R2008b compatibility 2008-09-10: Fixed minor bug as per Johnny Smith 2007-11-14: Fixed edge case problem with class properties tooltip; used existing object icon if available; added checkbox option to hide standard callbacks 2007-08-15: Fixed object naming relative property priorities; added sanity check for illegal container arg; enabled desktop (0) container; cleaned up warnings about special class objects 2007-08-03: Fixed minor tagging problems with a few Java sub-classes; displayed UIClassID if text/name/tag is unavailable 2007-06-15: Fixed problems finding HG components found by J. Wagberg 2007-05-22: Added nomenu option for improved performance; fixed export handles bug; fixed handle-finding/display bugs; "cleaner" error handling 2007-04-23: HTMLized classname tooltip; returned top-level figure Frame handle for figure container; fixed callbacks table; auto-checked newer version; fixed Matlab 7.2 compatibility issue; added HG objects tree 2007-04-19: Fixed edge case of missing figure; displayed tree hierarchy in interactive GUI if no output args; workaround for figure sub-menus invisible unless clicked 2007-04-04: Improved performance; returned full listing results in 4th output arg; enabled partial property names & property values; automatically filtered out container panels if children also returned; fixed finding sub-menu items 2007-03-20: First version posted on the MathWorks file exchange: http://www.mathworks.com/matlabcentral/fileexchange/loadFile.do?objectId=14317

See also

java, handle, findobj, findall, javaGetHandles, uiinspect (on the File Exchange)

Required fields of container:

References findjobj(), and min.

Referenced by findjobj(), mibAnnotationsController.mibAnnotationsController(), mibBatchController.mibBatchController(), mibController.mibController(), mibLines3DController.mibLines3DController(), mibGUI>mibGUI_OpeningFcn(), mibMeasureToolGUI>mibMeasureToolGUI_OpeningFcn(), mibStatisticsGUI>mibStatisticsGUI_OpeningFcn(), and mibUpdateCheckController.updateWidgets().

Here is the call graph for this function:

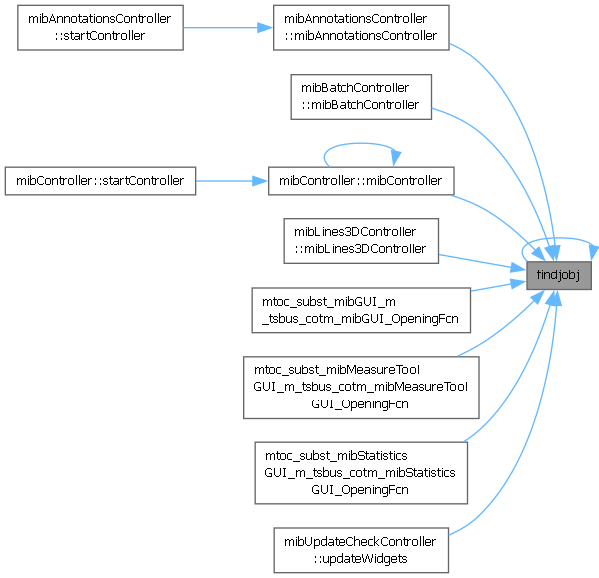

Here is the caller graph for this function:

findjobj>findjobj_fast()

function jControl = findjobj>findjobj_fast	(		hControl,
			jContainer )

findjobj>findTooltipIn()

function jControl = findjobj>findTooltipIn	(		jContainer,
			specialTooltipStr )
