Overview

Actions that can be applied to the Model layers. The Model layer is one of three main segmentation layers (Model, Selection, Mask) which can be used in combination with other layers. See more about segmentation layers in the Data layers section.

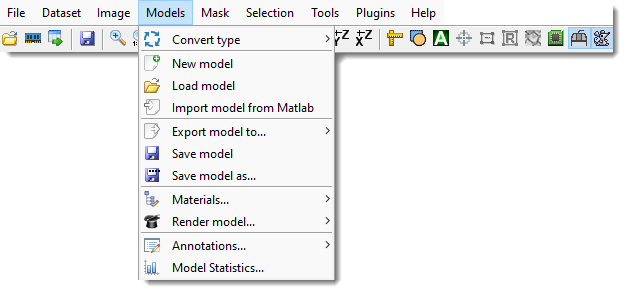

Model Menu


Convert type

Convert the model to a different type; the current type is checked in the menu.

Types of models in MIB
  • 63 materials (default): Stores Models, Selection, and Mask layers in a single memory container, reducing memory requirements and improving performance, but limits materials to 63.
  • 255 materials: Allows up to 255 materials, requiring additional memory for Selection and Mask layers (doubles memory usage).
  • 65535 materials: Allows up to 65535 materials, requiring ~1.25x more memory than 255 materials. The Segmentation panel appearance changes in this mode.
    Short demonstration
  • 4294967295 materials: Allows up to 4294967295 materials, requiring twice the memory of 65535 materials.
  • Indexed objects → 2D objects conn4: Detects all 2D objects (connectivity 4) in all materials and generates a new model where each object has a unique index.
  • Indexed objects → 2D objects conn8: Detects all 2D objects (connectivity 8) in all materials and generates a new model with unique indices.
  • Indexed objects → 3D objects conn6: Detects all 3D objects (connectivity 6) in all materials and generates a new model with unique indices.
  • Indexed objects → 3D objects conn26: Detects all 3D objects (connectivity 26) in all materials and generates a new model with unique indices.

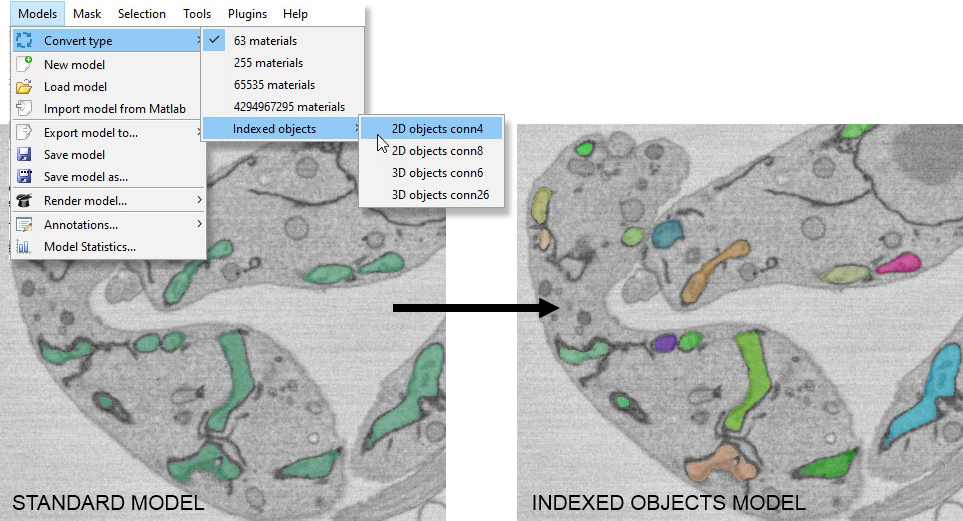

Example of standard model conversion into indexed objects

Indexed Objects Example

How to work with models having more than 255 materials

Segmentation Panel 65535 Materials should be named with numbers representing the current working material index (e.g., 11555 means that when selection is added to the model, it will be assigned to index 11555).

Select materials by:

  • Right-clicking the segmentation table and choosing Rename... or by pressing F2
  • Hovering over an object in the Image View panel and pressing Ctrl+F.

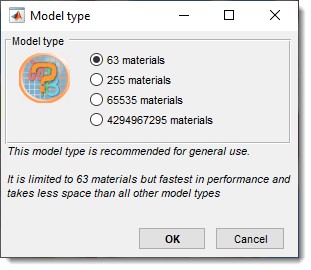

New model

Create a new model and select appropriate type

Allocates space for a new model. Use this to start a new model or delete the existing one.
Alternatively, use the Create button in the Segmentation Panel.

For model types see above


Load model

Loads a model from disk. By default, MIB reads models in MATLAB format (.model), but other formats are supported.

List of compatible model types
  • .AM, Amira Mesh: Amira Mesh label field for models from Amira.
  • .NRRD, Nearly Raw Raster Data: Compatible with 3D Slicer.
  • .MRC, Medical Research Council format: Compatible with IMOD. Can load multiple MRC files, each encoding an object, and merge them into a single model.
  • .PNG, PNG format: Saves models as 2D slices in Portable Network Graphic format.
  • .TIF, TIF format: Saves models as 2D slices or 3D volumes in Tag Image File format.

Note

Almost any standard image format can be loaded as a model using the All files (.) filter in the Open model dialog.

Alternatively, use the Load button in the Segmentation Panel.

Note

Models can be opened by drag-and-droping of the selected model files into the Segmentation panel

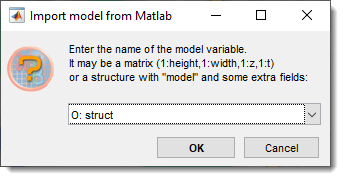

Import model from MATLAB

Import model from the main MATLAB workspace

Imports a model from the main MATLAB workspace.
Provide a variable name with a matrix matching the dataset dimensions [1:height, 1:width, 1:no-slices] of uint8 class, or a structure with the fields below.

Fields of MIB model structure
  • .model: Matrix matching dataset dimensions [1:height, 1:width, 1:depth, 1:time] of uint8 class.
  • .modelMaterialNames (optional): Cell array with material names.
  • .modelMaterialColors (optional): Matrix with colors (0-1) [1:materialIndex, Red Green Blue].
  • .labelText (optional): Cell array with annotation labels.
  • .labelPosition (optional): Matrix with annotation positions [1:annotationIndex, x y z].

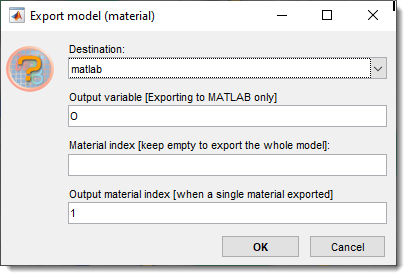

Export model to...

Export model from MIB

Exports the model from MIB to other programs.

List of options to export the models
  • MATLAB: Exports to the main MATLAB workspace as a structure (see above). Can be re-imported using Import model from MATLAB.
  • Imaris as volume: Exports to Imaris if available. See System Requirements for details.

Save model

Saves the model to a file in MATLAB format without prompting for a filename.

Model filename considerations
  • Default template: Labels_NAME_OF_THE_DATASET.model.
  • Otherwise, the filename is taken from last Save model as... opetation
  • Otherwise, the filename is assinged when a model is loaded .

Info

Can also be saved using the Save model button in the Toolbar.


Save model as...

Prompts for a filename and format to save the model.

List of model formats available for saving
  • .AM, Amira Mesh: RAW, RAW-ASCII, or RLE compressed formats (RLE is slow).
  • .MAT, MATLAB format: Native format for MIB version 1.
  • .MODEL, MATLAB format (default): Native format for MIB version 2.
  • .MOD, IMOD format: Contours for IMOD.
  • .MRC, IMOD format: Volume for IMOD.
  • .NRRD, Nearly Raw Raster Data: Compatible with 3D Slicer.
  • .PNG: 2D slices in Portable Network Graphic format.
  • .STL, STL format: Triangulated mesh for visualization programs like Blender.
  • .TIF, TIF format: 2D slices or 3D volumes.

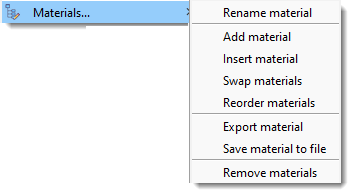

Material...

Import model from the main MATLAB workspace

Operations for model materials, also available by right-clicking the Segmentation table.

Materials menu demo

Available operations
  • Rename material: Rename the selected material.
  • Add material: Add a new material to the bottom of the list.
  • Insert material: Insert a material at a specified position, shifting others.
  • Swap materials: Swap positions of two materials.
  • Reorder materials: Reorder materials with a new sequence.
  • Export material: Export the selected material to MATLAB or Imaris.
  • Save material to file: Save the selected material to a file.
  • Remove material: Remove selected material(s) from the model.

Render model...

Renders segmented models using various methods.

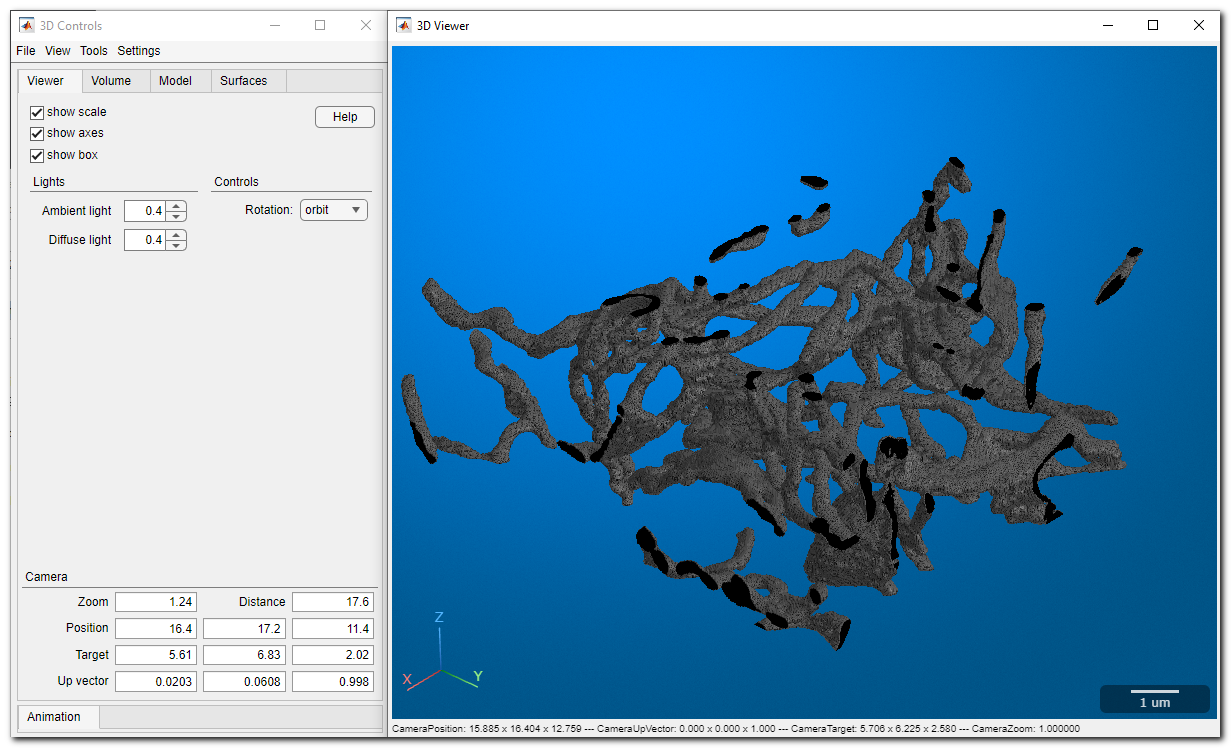

MIB rendering

Rendering of mitochondria in Trypanosoma bricei

From MIB 2.5 and MATLAB R2018b, materials can be visualized in MIB with hardware-accelerated volume rendering. Datasets can be downsampled. Snapshots and animations are supported.
See more: MIB 3D Viewer

Introduction to an updated 3D viewer
Original version of 3D viewer

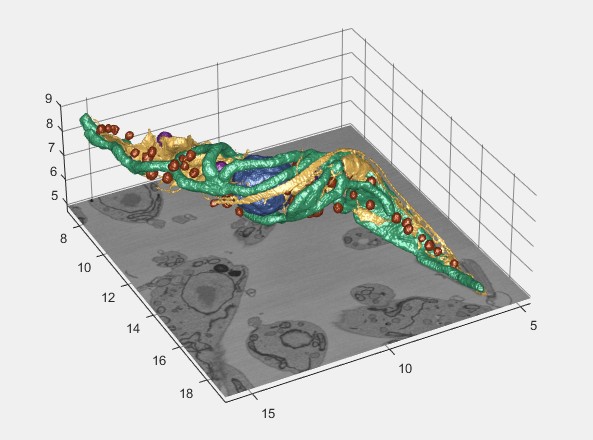

MATLAB isosurface

MATLAB Isosurface

Uses MATLAB to generate and visualize isosurfaces with a modified view3d function by Torsten Vogel.

Demonstrations:
Controls:
  • Double to restore the original view.
  • Z: Switch from ROTATION to ZOOM.
  • - to ZOOM.
  • hold middle mouse to PAN.
  • R: Switch from ZOOM to ROTATION.
  • ROTATION: for xy-axis rotation, middle mouse for z-axis rotation.

MATLAB isosurface and export to Imaris

Generates isosurfaces in MATLAB and exports them to Imaris for visualization.

Demonstration

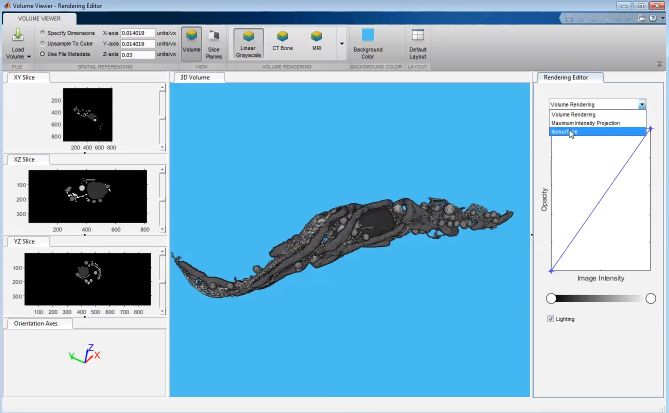

MATLAB volume viewer

MATLAB Volume Viewer

Renders the model using MATLAB’s Volume Viewer (R2017b–R2019b+). In R2019b, materials can display with the volume, but lighting controls are limited.

Demonstrations:

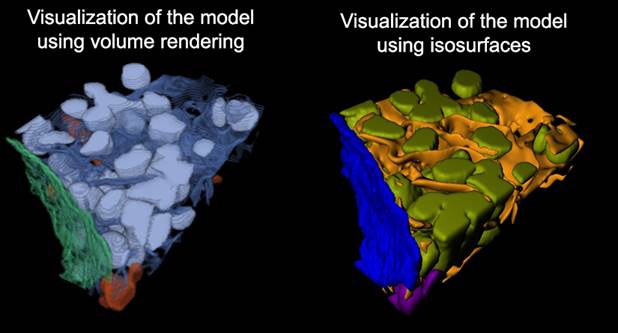

Fiji volume

Fiji Volume

Uses Fiji 3D Viewer for volume visualization.
Requires Fiji installation (see System Requirements).

Demonstration

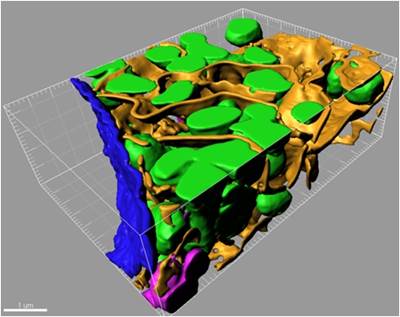

Imaris surface

Imaris Surface

Renders the model in Imaris. Requires Imaris and ImarisXT (see System Requirements).

Demonstrations:

The rendered material is specified in the Material list of the Segmentation Panel.


Annotations...

Imaris Surface

Modify the Annotations layer.

Demonstration

Available operations
  • List of annotations...: opens a window with existing annotations (see Segmentation Tools).
  • Export to Imaris as Spots: exports annotations as Spots in Imaris (export the dataset first).
  • Remove all annotations...: deletes all annotations in the model.

Model Statistics...

Gets statistics for the selected material, usable to filter the model by object properties.

Start quantification directly from the Segmentation table

Accessible also via
Segmentation Panel → Materials List → Right-click → Get statistics...
See Mask and Model Statistics for details.
